QUICKLOCK PIPE TYPE B

Water application - tunneling and mining business.

Download pdf
QUICKLOCK PIPE TYPE B
  • - Most Popular.
  • * - Hot dip galvanized pipe weight +10%.
  • ** - US Steel grade is for reference only.

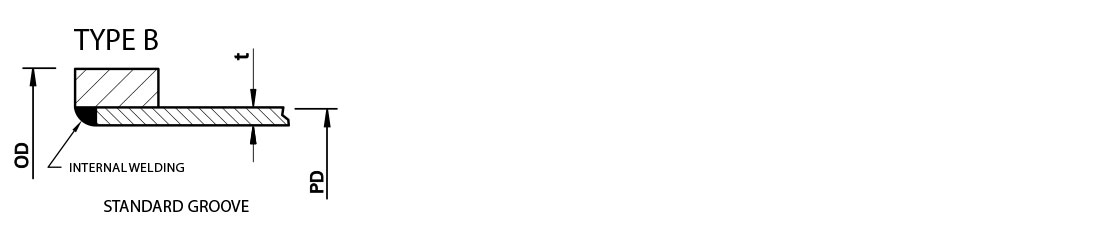

Pipes Type B - Standard cut grooved dimensions

Pipes Type B

Nominal
size
In / DN		O.D.
inches
mm		P.D.
inches
mm		Nominal
Pressure
psi / bar		t
inches
mm		Steel grade
US **
EU		Grooved
ends type
Groove		Black pipe
approx.
weight 6 m
lbs / Kg *
2 1/2''
65		 3.000
76.1		 70 500
34		 0.060
1.5		 Grade B
S235		 B
standard		 34.4
15.6
3''
80		 3.500
88.9		 80 500
34		 0.060
1.5		 Grade B
S235		 B
standard		 39.3
17.8
4''
100		 4.500
114.3		 4.250
108		 500
34		 0.060
1.5		 Grade B
S235		 B
standard		 53.2
24.1
4''
100		 4.500
114.3		 4.250
108		 500
34		 0.080
2		 Grade B
S235		 B
standard		 70.1
31.8
5''
125		 5.500
139.7		 130 450
31		 0.080
2		 Grade B
S235		 B
standard		 85.1
38.6
6''
150		 6.625
168.3		 6.250
159		 300
21		 0.060
1.5		 Grade B
S235		 B
standard		 78.7
35.7
6''
150		 6.625
168.3		 6.250
159		 360
25		 0.080
2		 Grade B
S235		 B
standard		 104
47.2
6''
150		 6.625
168.3		 6.250
159		 450
31		 0.100
2.5		 Grade B
S235		 B
standard		 129.2
58.6

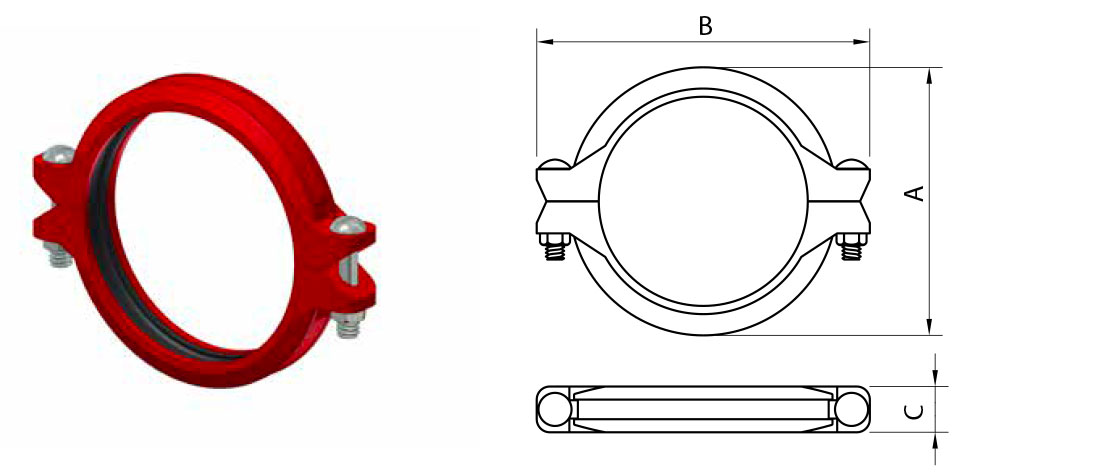

STANDARD Couplings - Ductile Iron

STANDARD Couplings

Nominal
size
In / DN		Groove
size
In / mm		Nominal
Pressure
psi / bar		Approx. DimensionsGrooveApprox.
Weight
lbs / Kg
A
in / mm		B
in / mm		C
in / mm
2 1/2''
65		 3.000
76.1		 500
34		 3.94
100		 5.71
145		 1.78
45		 standard 1.9
0.9
3''
80		 3.500
88.9		 500
34		 4.53
115		 6.30
160		 1.78
45		 standard 2.9
1.3
4''
100		 4.500
114.3		 500
34		 5.80
147		 8.03
204		 2.13
54		 standard 4.1
1.9
4''
100		 4.500
114.3		 500
34		 5.80
147		 8.03
204		 2.13
54		 standard 4.1
1.9
5''
125		 5.500
139.7		 450
31		 6.80
173		 9.59
244		 2.13
54		 standard 6.3
2.9
6''
150		 6.625
168.3		 450
31		 8.00
203		 11.07
281		 2.28
58		 standard 7
3.2
6''
150		 6.625
168.3		 450
31		 8.00
203		 11.07
281		 2.28
58		 standard 7
3.2
6''
150		 6.625
168.3		 450
31		 8.00
203		 11.07
281		 2.28
58		 standard 7
3.2
