QUICKLOCK PIPE TYPE C-GROUT

Grouting and bi-component application - tunneling and mining business.

Download pdf
QUICKLOCK PIPE TYPE C-GROUT
  • - Most Popular.
  • * - Hot dip galvanized pipe weight +10%.
  • ** - US Steel grade is for reference only.

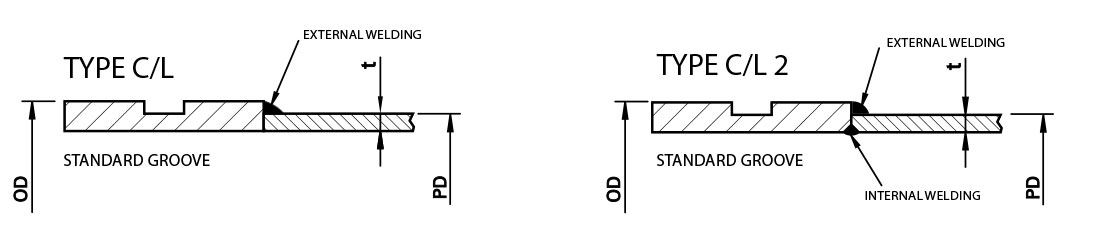

Pipes Type C - Standard cut grooved dimensions***

Pipes Type C

Nominal
size
In / DN		O.D.
inches
mm		P.D.
inches
mm		Nominal
Pressure
psi / bar		t
inches
mm		Steel grade
US **
EU		Grooved
ends type
Groove		Black pipe
approx.
weight 6 m
lbs / Kg *
1 1/2''
40		 2.375
60.3		 1.900
48.3		 1162
80		 0.092
2.3		 X52
S355		 C/L
standard		 36.4
16.5
2''
50		 3.000
76.1		 2.375
60.3		 1162
80		 0.092
2.3		 X52
S355		 C/L
standard		 46.8
21.2
2 1/2''
65		 3.500
88.9		 3.000
76.1		 1162
80		 0.092
2.3		 X52
S355		 C/L
standard		 58.9
26.7
3''
80		 4.500
114.3		 3.500
88.9		 1162
80		 0.100
2.5		 X52
S355		 C/L2
standard		 78
35.4
4''
100		 4.500
114.3		 4.250
108.0		 1162
80		 0.119
3		 X52
S355		 C/L2
standard		 106.3
48.2
5''
125		 5.500
139.7		 130.0 1162
80		 0.125
3.2		 X52
S355		 C/L2
standard		 137.6
62.4
6''
150		 6.625
168.3		 6.250
159.0		 1162
80		 0.142
3.6		 X52
S355		 C/L2
standard		 188.5
85.5
8''
200		 8.625
219.1		 8.000
203.0		 800
55		 0.188
4.8		 X52
S355		 C/L2
standard		 324
147

HP coupling - Ductile Iron

STANDARD Couplings

Nominal
size
In / DN		Groove
size
In / mm		Nominal
Pressure
psi / bar		Approx. DimensionsGrooveApprox.
Weight
lbs / Kg
A
in / mm		B
in / mm		C
in / mm
2''
50		 2.375
60.3		 1162
80		 3.63
92		 5.88
149		 1.88
48		 standard 2.6
1.2
2 1/2''
65		 3.000
76.1		 1162
80		 4.38
111		 6.63
168		 1.88
48		 standard 3.2
1.5
3''
80		 3.500
88.9		 1162
80		 5.00
127		 7.13
181		 1.88
48		 standard 3.7
1.7
4''
100		 4.500
114.3		 1162
80		 6.13
156		 8.88
226		 2.13
54		 standard 6.7
3
4''
100		 4.500
114.3		 1162
80		 6.13
156		 8.88
226		 2.13
54		 standard 6.7
3
5''
125		 5.500
139.7		 1162
80		 8.63
219		 10.65
270		 2.13
54		 standard 10.0
4.5
6''
150		 6.625
168.3		 1162
80		 8.63
219		 11.88
302		 2.13
54		 standard 12.0
5.4
8''
200		 8.625
219.1		 800
55		 11.00
279		 14.75
375		 2.50
63		 standard 20.8
9.4

Pipes Type C - Lever cut grooved dimensions***

Pipes Type C

Nominal
size
In / DN		O.D.
inches
mm		P.D.
inches
mm		Nominal
Pressure
psi / bar		t
inches
mm		Steel grade
US **
EU		Grooved
ends type
Groove		Black pipe
approx.
weight 6 m
lbs / Kg *
1 1/2''
40		 2.375
60.3		 1.900
48.3		 1232
85		 0.100
2.5		 X52
S355		 C/L
LEVER		 39.5
17.9
2''
50		 2.875
73.0		 2.375
60.3		 1232
85		 0.100
2.5		 X52
S355		 C/L
LEVER		 50
22.7
2 1/2''
65		 3.500
88.9		 3.000
76.1		 1450
100		 0.100
2.5		 X52
S355		 C/L
LEVER		 63.3
28.7
3 1/4''
85		 3.820
97		 3.500
88.9		 1450
100		 0.119
3		 X52
S355		 C/L2
LEVER		 87
39.5

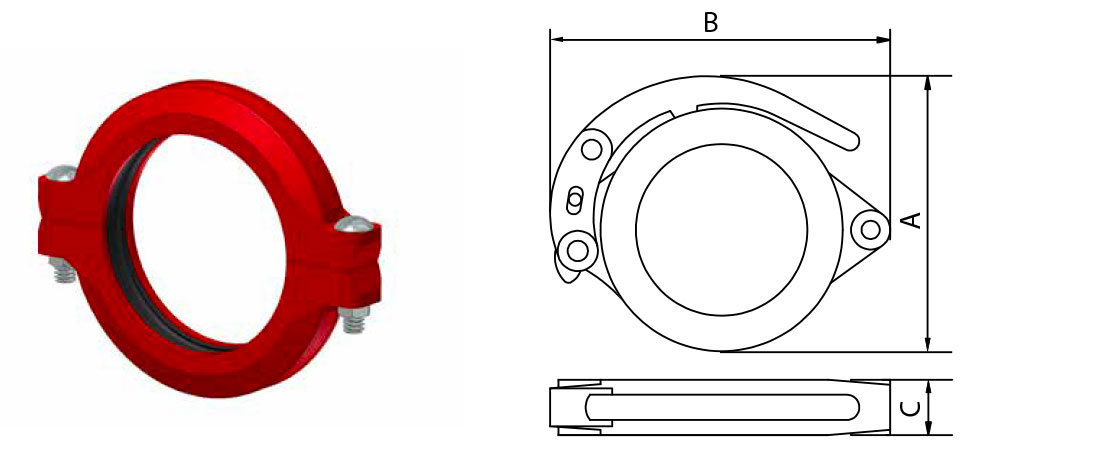

LEVER coupling - Steel

LEVER Couplings

Nominal
size
In / DN		Groove
size
In / mm		Nominal
Pressure
psi / bar		Approx. DimensionsGrooveApprox.
Weight
lbs / Kg		Most
popular
A
in / mm		B
in / mm
2''
50		 2.375
60.3		 1232
85		 4.13
105		 5.75
146		 LEVER 3.29
1.50		 flexible
galvanized
2 1/2''
65		 2.875
73.0		 1232
85		 4.80
122		 6.30
160		 LEVER 3.85
1.75		 flexible
galvanized
3''
80		 3.500
88.9		 1450
100		 5.47
139		 7.44
189		 LEVER 5.25
2.38		 flexible
painted
3 1/4''
85		 3.820
97.0		 1450
100		 5.75
146		 7.72
196		 LEVER 6.83
3.10		 flexible
painted

Pipes Type C - TES cut grooved dimensions***

Pipes Type C

Nominal
size
In / DN		O.D.
inches
mm		P.D.
inches
mm		Nominal
Pressure
psi / bar		t
inches
mm		Steel grade
US **
EU		Grooved
ends type
Groove		Black pipe
approx.
weight 6 m
lbs / Kg *
1 1/2''
40		 2.375
60.3		 1.900
48.3		 2500
172		 0.156
4		 X52 / X56
S355N		 C/L
TES		 60.6
27.5
2''
50		 2.875
73		 2.375
60.3		 2500
172		 0.156
4		 X52 / X56
S355N		 C/L
TES		 77.2
35
2 1/2''
65		 3.500
88.9		 1.000
76.1		 2500
172		 0.156
4		 X52 / X56
S355N		 C/L
TES		 98.4
44.6
3''
80		 4.500
114.3		 3.500
88.9		 2500
172		 0.196
5		 X52 / X56
S355N		 C/L
TES		 145
65.8

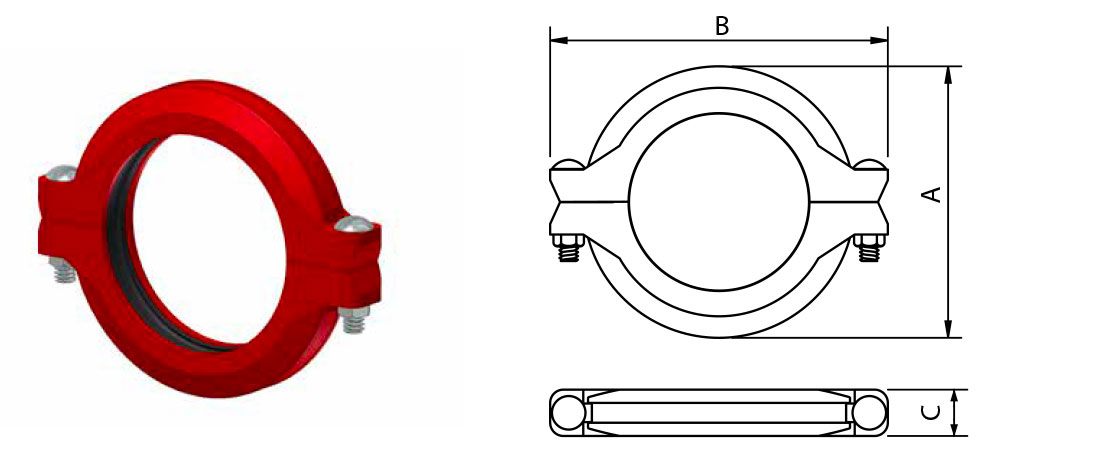

TES coupling - Ductile Iron

TES Couplings

Nominal
size
In / DN		Groove
size
In / mm		Nominal
Pressure
psi / bar		Approx. DimensionsGrooveApprox.
Weight
lbs / Kg
A
in / mm		B
in / mm		C
in / mm
2''
50		 2.375
60.3		 2500
172		 3.44
87		 6.51
765		 1.88
48		 TES 3.2
1.5
2 1/2''
65		 2.875
73.0		 2500
172		 4
102		 7.1
180		 1.88
48		 TES 4.0
1.8
3''
80		 3.500
88.9		 2500
172		 4.69
119		 7.74
197		 1.88
48		 TES 4.6
2.1
4''
100		 4.500
114.3		 2500
172		 5.94
151		 9.54
242		 2.13
54		 TES 8.2
3.7
