QUICKLOCK PIPE TYPE C - UNIVERSAL

Water, sewage, air application - tunneling, mining, industrial business, shipbuilding.

Før du starter, er det viktig å lese gjennom reglene og vilkårene på hvert norske casinoer rask utbetaling for å unngå misforståelser.
Download pdf
QUICKLOCK PIPE TYPE C - UNIVERSAL
  • - Most Popular.
  • * - Hot dip galvanized pipe weight +10%.
  • ** - US Steel grade is for reference only.

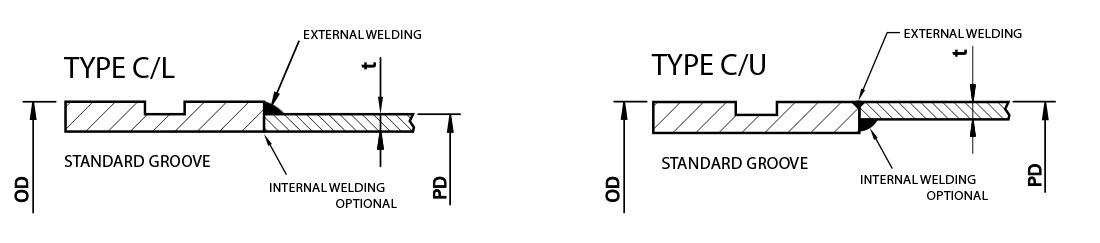

Pipes Type C - Standard cut grooved dimensions

Pipes Type C

Nominal
size
In / DN		O.D.
inches
mm		P.D.
inches
mm		Nominal
Pressure
psi / bar		t
inches
mm		Steel
grade
US **
EU		Grooved
ends type
Groove		Black pipe
approx.
weight 6 m
lbs / Kg *
2"
50		 2.375
60.3		 2.375
60.3		 500
34		 0.060
1.5		 Grade B
S235		 C/U
standard		 29.8
13.5
2 1/2"
65		 3.000
76.1		 70 500
34		 0.060
1.5		 Grade B
S235		 C/L
standard		 35.1
15.9
3"
80		 3.500
88.9		 80 500
34		 0.060
1.5		 Grade B
S235		 C/L
standard		 40.0
18.1
4"
100		 4.500
114.3		 4.250
108		 500
34		 0.060
1.5		 Grade B
S235		 C/L
standard		 54.3
24.6
4"
100		 4.500
114.3		 4.250
108		 500
34		 0.080
2		 Grade B
S235		 C/L
standard		 71
32.2
5"
125		 5.500
139.7		 130 450
31		 0.080
2		 Grade B
S235		 C/L
standard		 86.4
39.2
6"
150		 6.625
168.3		 6.250
159		 300
21		 0.060
1.5		 Grade B
S235		 C/L
standard		 80.9
36.7
6"
150		 6.625
168.3		 6.250
159		 360
25		 0.080
2		 Grade B
S235		 C/L
standard		 106
48.1
6"
150		 6.625
168.3		 6.250
159		 450
31		 0.100
2.5		 Grade B
S235		 C/L
standard		 131
59.4
8"
200		 8.625
219.1		 8.000
203		 450
31		 0.119
3		 Grade B
S235		 C/L
standard		 204.6
92.8
8"
200		 8.625
219.1		 8.625
219.1		 450
31		 0.119
3		 Grade B
S235		 C/L
standard		 217
98.4
10"
250		 10.750
273		 10.750
273		 300
21		 0.156
4		 Grade B
S235		 C/L
standard		 360.5
163.5
10”
250		 10.750
273		 10.750
273		 450
31		 0.156
4		 Grade B
S235		 C/L
standard		 360.5
163.5
12"
300		 12.750
323.9		 12.750
323.9		 300
21		 0.156
4		 Grade B
S235		 C/L
standard		 426.6
193.5
14"
350		 14.000
355.6		 14.000
355.6		 300 0.196
5		 Grade B
S235		 C/L
standard		 581
263.5
16"
400		 16.000
406.4		 16.000
406.4		 300
21		 0.196
5		 Grade B
S235		 C/L
standard		 668
303
18"
450		 18.000
457.2		 18.000
457.2		 300
21		 0.196
5		 Grade B
S235		 C/L
standard		 756.2
343
20"
500		 20.000
508		 20.000
508		 300
21		 0.250
6.3		 Grade B
S235		 C/L
standard		 1069.3
485

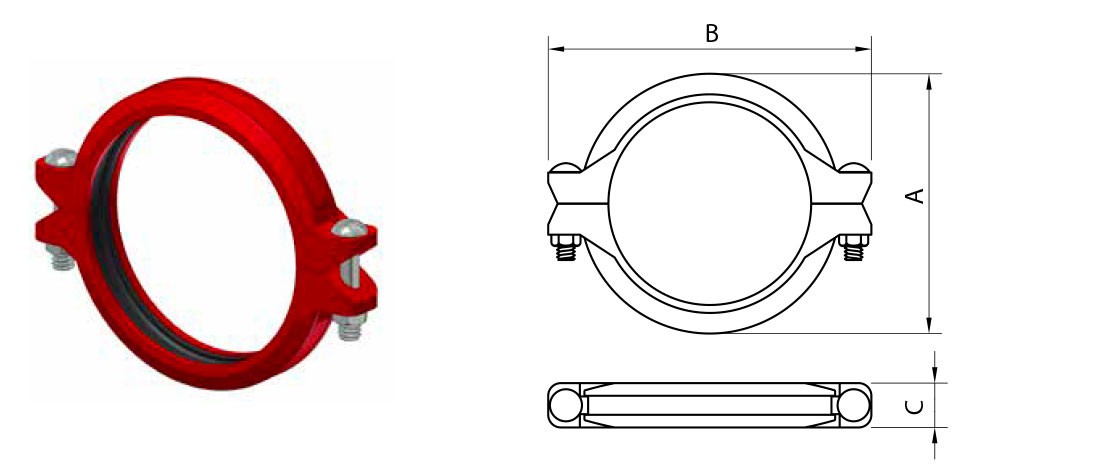

STANDARD Couplings - Ductile Iron

STANDARD Couplings

Nominal
size
In / DN		Groove
size
In / mm		Nominal
Pressure
psi / bar		Approx. DimensionsGrooveApprox.
Weight
lbs / Kg
A
in / mm		B
in / mm		C
in / mm
2"
50		 2.375
60.3		 500
34		 3.27
83		 4.92
125		 1.74
44		 standard 1.7
0.8
2 1/2"
65		 3.000
76.1		 500
34		 3.94
100		 5.71
145		 1.78
45		 standard 1.9
0.9
3"
80		 3.500
88.9		 500
34		 4.53
115		 6.30
160		 1.78
45		 standard 2.9
1.3
4"
100		 4.500
114.3		 500
34		 5.80
147		 8.03
204		 2.13
54		 standard 4.1
1.9
4"
100		 4.500
114.3		 500
34		 5.80
147		 8.03
204		 2.13
54		 standard 4.1
1.9
5"
125		 5.500
139.7		 450
31		 6.80
173		 9.59
244		 2.13
54		 standard 6.3
2.9
6"
150		 6.625
168.3		 450
31		 8.00
203		 11.07
281		 2.28
58		 standard 7
3.2
6"
150		 6.625
168.3		 450
31		 8.00
203		 11.07
281		 2.28
58		 standard 7
3.2
6"
150		 6.625
168.3		 450
31		 8.00
203		 11.07
281		 2.28
58		 standard 7
3.2
8"
200		 8.625
219.1		 450
31		 10.34
263		 13.97
355		 2.32
59		 standard 12.4
5.6
8"
200		 8.625
219.1		 450
31		 10.34
263		 13.97
355		 2.32
59		 standard 12.4
5.6
10"
250		 10.750
273		 300
21		 13.27
337		 16.00
406		 2.56
65		 standard 24.0
10.9
10”
250		 10.750
273		 800
55		 13.63
346		 17.13
435		 2.63
67		 HP
couplings		 31.1
14.1
12"
300		 12.750
323.9		 300
21		 14.96
378		 18.31
465		 2.56
65		 standard 27.8
12.6
14"
350		 14.000
355.6		 300
21		 15.83
402		 19.41
493		 2.83
72		 standard 39.2
17.8
16"
400		 16.000
406.4		 300
21		 18.03
458		 21.54
547		 2.85
72		 standard 45.0
20.4
18"
450		 18.000
457.2		 300
21		 19.88
505		 23.54
598		 3.07
78		 standard 64.4
29.2
20"
500		 20.000
508		 300
21		 21.65
550		 25.51
648		 3.07
78		 standard 74,8
34.0

STANDARD LOW PRESSURE COUPLINGS

Diam. 1" - 24"     PN21     PSI 300

STANDARD MEDIUM PRESSURE COUPLINGS

Diam. 1" - 4"     PN34     PSI 500

Diam. 5" - 12"     PN31     PSI 450

Diam. 14" - 24"     PN21     PSI 300

HIGH PRESSURE COUPLINGS

Diam. 2" - 8"    PN80     PSI 1162

Diam. 10" - 12"     PN55     PSI 800

From Diam. 14" couplings can be made of 3 or more parts
