QUICKLOCK PIPE TYPE C-SNOW

Water application - Snow making business.

Download pdf
QUICKLOCK PIPE TYPE C-SNOW
  • - Most Popular.
  • * - Hot dip galvanized pipe weight +10%.
  • ** - US Steel grade is for reference only.

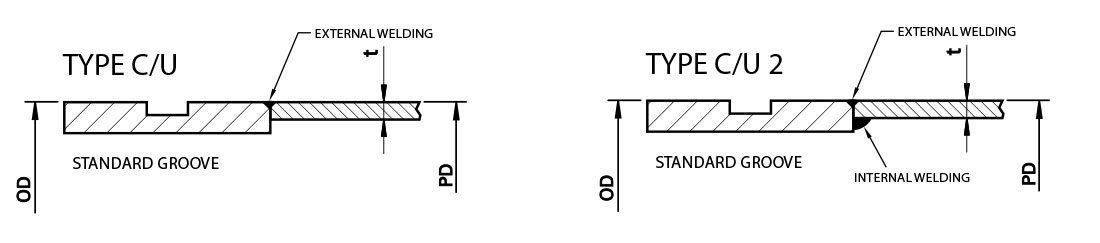

Pipes Type C - Standard cut grooved dimensions

Pipes Type C

Pipes Type C

Nominal
size
In / DN		O.D.
inches
mm		P.D.
inches
mm		Nominal
Pressure
psi / bar		t
inches
mm		Steel grade
US **
EU		Grooved
ends type
Groove		Black pipe
approx.
weight 6 m
lbs / Kg *
2''
50		 2.375
60.3		 2.375
60.3		 580
40		 0.060
1.5		 Grade B
S235		 C/U
standard		 29.8
13.5
2 1/2''
65		 3.000
76.1		 70 580
40		 0.060
1.5		 Grade B
S235		 C/L
standard		 35.1
15.9
3''
80		 3.500
88.9		 80 580
40		 0.060
1.5		 Grade B
S235		 C/L2
standard		 39.9
18.1
4''
100		 4.500
114.3		 4.250
108		 580
40		 0.080
2		 Grade B
S235		 C/L2
standard		 71
32.2
5''
125		 5.500
139.7		 130 580
40		 0.080
2		 Grade B
S235		 C/L2
standard		 86.4
39.2
5''
125		 5.563
141.3		 130 580
40		 0.080
2		 Grade B
S235		 C/L2
standard		 87.3
39.6
6''
150		 6.625
168.3		 6.250
159		 580
40		 0.100
2.5		 Grade B
S235		 C/L2
standard		 131
59.4
8''
200		 8.625
219.1		 8.000
203		 580
40		 0.119
3		 X52
S355		 C/L2
standard		 203.3
92.2
8''
200		 8.625
219.1		 8.625
219.1		 580
40		 0.119
3		 X52
S355		 C/U2
standard		 217
98.4

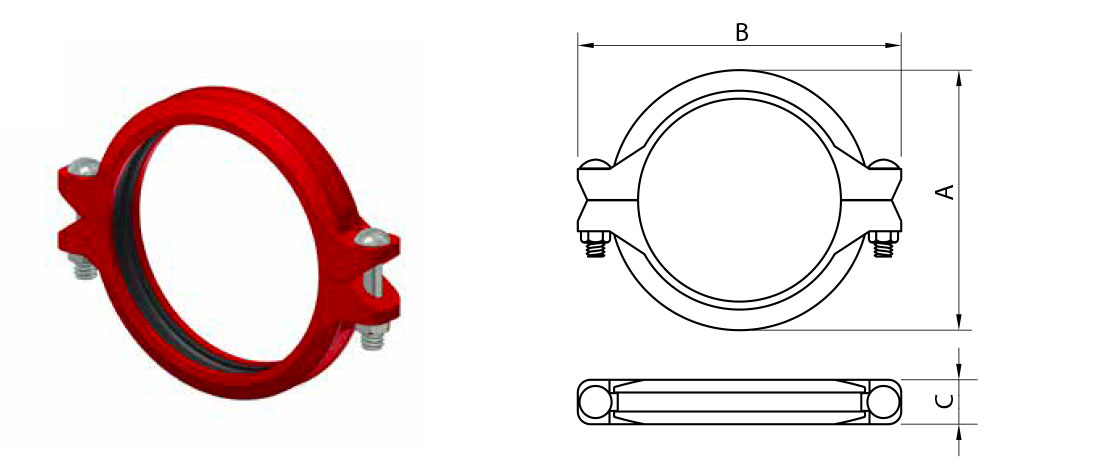

STANDARD Couplings - Ductile Iron

STANDARD Couplings

Nominal
size
In / DN		Groove
size
In / mm		Nominal
Pressure
psi / bar		Approx. DimensionsGrooveApprox.
Weight
lbs / Kg
A
in / mm		B
in / mm		C
in / mm
2''
50		 2.375
60.3		 580
40		 3.27
83		 4.92
125		 1.74
44		 standard 1.7
0.8
2 1/2''
65		 3.000
76.1		 580
40		 3.94
100		 5.71
145		 1.78
45		 standard 1.9
0.9
3''
80		 3.500
88.9		 580
40		 4.53
115		 6.30
160		 1.78
45		 standard 2.9
1.3
4''
100		 4.500
114.3		 580
40		 5.80
147		 8.03
204		 2.13
54		 standard 4.1
1.9
5''
125		 5.500
139.7		 580
40		 6.80
173		 9.59
244		 2.13
54		 standard 6.3
2.9
5''
125		 5.563
141.3		 580
40		 6.88
175		 10.07
256		 2.13
54		 standard 5.8
2.6
6''
150		 6.625
168.3		 580
40		 8.00
203		 11.07
281		 2.28
58		 standard 7
3.2
8''
200		 8.625
219.1		 580
40		 10.34
263		 13.97
355		 2.32
59		 standard 12.4
5.6
8''
200		 8.625
219.1		 580
40		 10.34
263		 13.97
355		 2.32
59		 standard 12.4
5.6

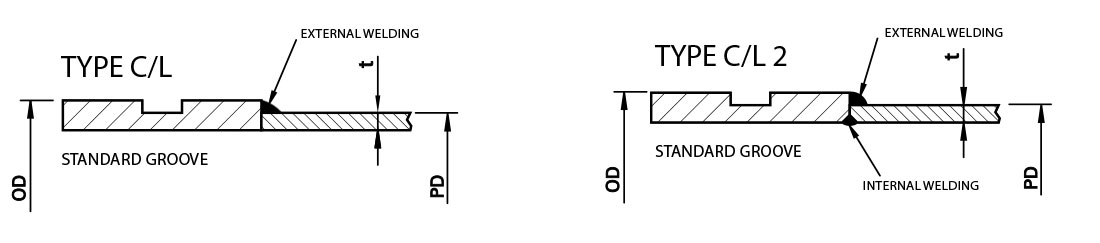

Pipes Type C - Standard cut grooved dimensions

Pipes Type C

Pipes Type C

Nominal
size
In / DN		O.D.
inches
mm		P.D.
inches
mm		Nominal
Pressure
psi / bar		t
inches
mm		Steel grade
US **
EU		Grooved
ends type
Groove		Black pipe
approx.
weight 6 m
lbs / Kg *
2''
50		 2.375
60.3		 500
60.3		 1162
80		 0.080
2		 Grade B
S235		 C/U
standard		 38.8
17.6
2 1/2''
65		 3.000
76.1		 70 1162
80		 0.080
2		 X52
S355		 C/L
standard		 45.7
20.7
3''
80		 3.500
88.9		 80 1162
80		 0.080
2		 X52
S355		 C/L2
standard		 52.3
23.7
4''
100		 4.000
114.3		 4.250
108		 1000
69		 0.080
2		 X52
S355		 C/L2
standard		 71
32.2
4''
100		 4.000
114.3		 4.250
108		 1162
80		 0.119
3		 X52
S355		 C/L2
standard		 104.3
47.3
5''
125		 5.500
139.7		 130 1162
80		 0.119
3		 X52
S355		 C/L2
standard		 126.8
57.5
5''
125		 5.563
141.3		 130 1162
80		 0.119
3		 X52
S355		 C/L2
standard		 127.7
57.9
6''
150		 6.625
168.3		 6.250
159		 1000
69		 0.119
3		 X52
S355		 C/L2
standard		 155.9
70.7
6''
150		 6.625
168.3		 6.250
159		 1162
80		 0.126
3.2		 X52
S355		 C/L2
standard		 165.6
75.11
8''
200		 8.625
219.1		 8.625
219.1		 800
55		 0.142
3.6		 X52
S355		 C/U2
standard		 258
117
10''
250		 10.750
273,0		 10.750
273		 800
55		 0.156
4		 X52
S355		 C/U2
standard		 360.5
163.5
12''
300		 12.750
323.9		 12.750
323.9		 800
55		 0.196
5		 X52
S355		 C/U2
standard		 529.1
240

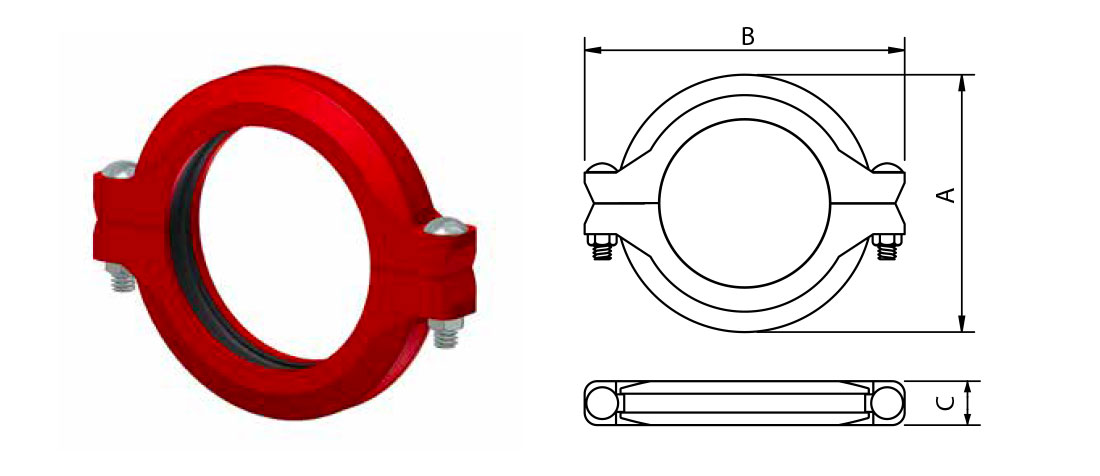

HP Couplings - Ductile Iron

HP Couplings

Nominal
size
In / DN		Groove
size
In / mm		Nominal
Pressure
psi / bar		Approx. DimensionsGrooveApprox.
Weight
lbs / Kg
A
in / mm		B
in / mm		C
in / mm
2''
50		 2.375
60.3		 1162
80		 3.63
92		 5.88
149		 1.88
48		 standard 2.6
1.2
2 1/2''
65		 3.000
76.1		 1162
80		 4.38
111		 6.63
168		 1.88
48		 standard 3.2
1.5
3''
80		 3.500
88.9		 1162
80		 5.00
127		 7.13
181		 1.88
48		 standard 3.7
1.7
4''
100		 4.000
114.3		 1000
69		 6.13
156		 8.88
226		 2.13
54		 standard 6.7
3
4''
100		 4.000
114.3		 1162
80		 6.13
156		 8.88
226		 2.13
54		 standard 6.7
3
5''
125		 5.500
139.7		 1162
80		 8.63
219		 10.65
270		 2.13
54		 standard 10
4.5
5''
125		 5.563
141.3		 1162
80		 7.75
197		 10.65
270		 2.13
54		 standard 10.6
4.8
6''
150		 6.625
168.3		 1000
69		 8.63
219		 11.88
302		 2.13
54		 standard 12
5.4
6''
150		 6.625
168.3		 1162
80		 8.63
219		 11.88
302		 2.13
54		 standard 12
5.4
8''
200		 8.625
219.1		 800
55		 11.00
279		 14.75
375		 2.50
63		 standard 20.8
9.4
10''
250		 10.750
273		 800
55		 13.63
346		 17.13
435		 2.63
67		 standard 31.1
14.1
12''
300		 12.750
323.9		 800
55		 15.63
397		 19.25
489		 2.63
67		 standard 27.8
12.6
