Low pressure water application - tunneling, mining, agriculture, irrigation and civil engineering business.
Download pdf
SPHERICAL PIPE

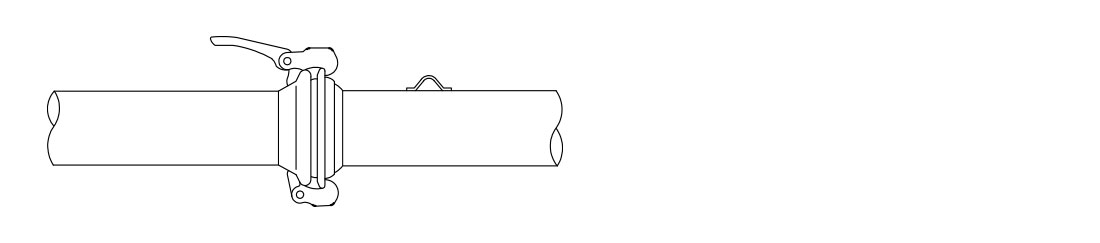

Steel pipe with ITA joint
| D. mm | PN | t | Steel grade EU | Ends type | ||
|---|---|---|---|---|---|---|
| bar | PSI | mm | inches | |||
| 50 | 15 | 217 | 1,5 | 0,06 | S235 | ita |
| 60 | 10 | 145 | 1 | 0,039 | DC01 | ita |
| 60 | 10 | 145 | 1,5 | 0,06 | S235 | ita |
| 80 | 9 | 130 | 1 | 0,039 | DC01 | ita |
| 80 | 9 | 130 | 1,5 | 0,06 | S235 | ita |
| 100 | 8 | 116 | 1 | 0,039 | DC01 | ita |
| 100 | 8 | 116 | 2 | 0,08 | S235 | ita |
| 120 | 7 | 101 | 1 | 0,039 | DC01 | ita |
| 150 | 6 | 87 | 1,2 | 0,047 | DC01 | ita |
| 150 | 15 | 217 | 2 | 0,08 | S235 | ita |
| 200 | 8 | 116 | 2 | 0,08 | S235 | ita |
| 250 | 6 | 87 | 2 | 0,08 | S235 | ita |
| 300 | 6 | 87 | 2 | 0,08 | S235 | ita |
Steel pipe with BA joint
| D. mm | PN | t | Steel grade EU | Ends type | ||
|---|---|---|---|---|---|---|
| bar | PSI | mm | inches | |||
| 50 | 20 | 290 | 1,5 | 0,06 | S235 | ba |
| 76 | 20 | 290 | 1,5 | 0,06 | S235 | ba |
| 89 | 20 | 290 | 1,5 | 0,06 | S235 | ba |
| 108 | 15 | 217 | 1,5 | 0,06 | S235 | ba |
| 133 | 12 | 174 | 1,5 | 0,06 | S235 | ba |
| 159 | 12 | 174 | 1,5 | 0,06 | S235 | ba |
| 194 | 12 | 174 | 2 | 0,08 | S235 | ba |
| 250 | 12 | 174 | 2,5 | 0,1 | S235 | ba |
| 300 | 12 | 174 | 2,5 | 0,1 | S235 | ba |
| 400 | 6 | 87 | 5 | 0,196 | S235 | ba |
| 450 | 6 | 87 | 5 | 0,196 | S235 | ba |

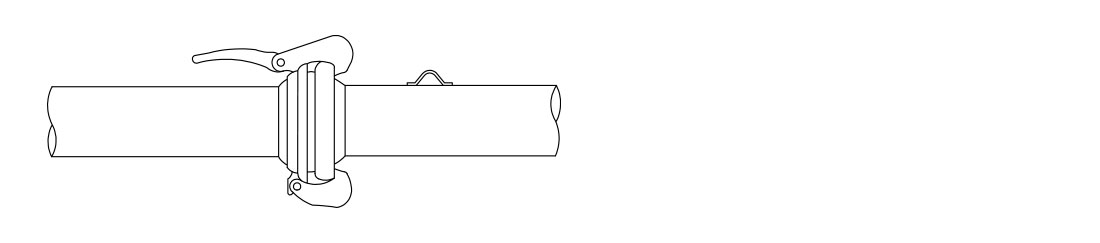

Steel pipe with CA joint
| D. mm | PN | t | Steel grade EU | Ends type | ||
|---|---|---|---|---|---|---|
| bar | PSI | mm | inches | |||
| 50 | 20 | 290 | 1,5 | 0,06 | S235 | ca |
| 70 | 20 | 290 | 1,5 | 0,06 | S235 | ca |
| 89 | 15 | 217 | 1,5 | 0,06 | S235 | ca |
| 108 | 15 | 217 | 1,5 | 0,06 | S235 | ca |
| 133 | 13 | 188 | 1,5 | 0,06 | S235 | ca |
| 159 | 10 | 145 | 1,5 | 0,06 | S235 | ca |
