QUICKLOCK PIPE TYPE C - SLURRY

Slurry application - tunneling and mining business.

Download pdf
QUICKLOCK PIPE TYPE C - SLURRY

  • - Most Popular.
  • * - Hot dip galvanized pipe weight +10%.
  • ** - US Steel grade is for reference only.

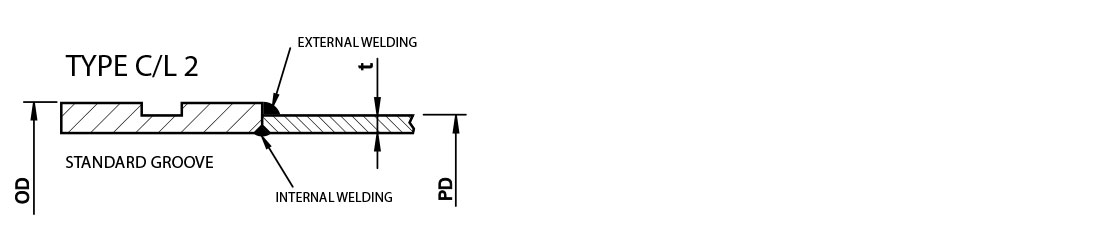

Pipes Type C - Standard cut grooved dimensions

Pipes Type C

Nominal
size
In / DN
O.D.
inches
mm
P.D.
inches
mm
Nominal
Pressure
psi / bar
t
inches
mm
Steel grade
US **
EU
Grooved
ends type
Groove
Black pipe
approx.
weight 6 m
lbs / Kg *
8''
200
8.625
219.1
8.000
203
450
31
0.219
5.6
X52
S355
C/L2
standard
374.8
170
10''
250
12.750
323.9
10.750
273
300
21
0.250
6.3
X52
S355
C/L2
standard
595.3
270
12''
300
14.000
355.6
12.750
323.9
300
21
0.271
7.1
X52
S355
C/L2
standard
771.6
350
14''
350
14.842
377
14.000
355.6
300
21
0.271
7.1
X52
S355
C/L2
standard
837.8
380
16''
400
16.772
426
16.000
406.4
300
21
0.271
7.1
X52
S355
C/L2
standard
956.8
434
18''
450
18.898
480
18.000
457.2
300
21
0.337
8.6
X52
S355
C/L2
standard
1300.7
590
20''
500
20.866
530
20.000
508
300
21
0.375
9.5
X52
S355
C/L2
standard
1591.7
722

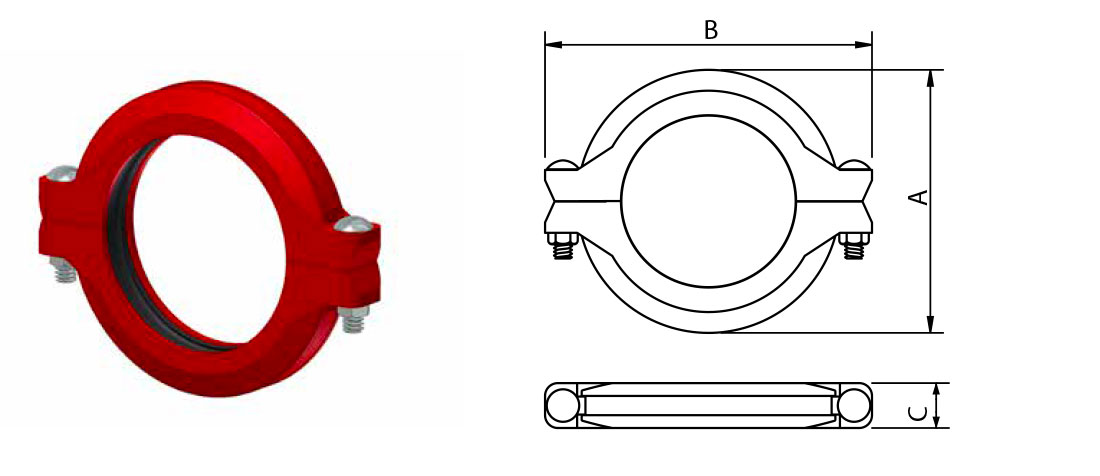

HP Couplings - Ductile Iron

STANDARD Couplings

Nominal
size
In / DN
Groove
size
In / mm
Nominal
Pressure
psi / bar
Approx. DimensionsGrooveApprox.
Weight
lbs / Kg
A
in / mm
B
in / mm
C
in / mm
8''
200
8.625
219.1
1000
69
11.00
279
14.75
375
2.50
63
standard 20.8
9.4
12''
300
12.750
323.9
800
55
15.63
397
19.25
489
2.63
67
standard 27.8
12.6
14''
350
14.000
355.6
300
21
16.63
422
19.88
505
2.88
73
standard 35.6
16.1
14''
350
14.842
377
300
21
17.39
442
20.96
531
2.8
71
standard 39.2
17.8
16''
400
16.772
426
300
21
19.69
500
22.92
581
2.92
74
standard 56.7
25.7
18''
450
18.898
480
300
21
22.38
569
25.86
655
3.04
77
standard 77.2
35
20''
500
20.866
530
300
21
24.29
617
27.80
704
3.07
77
standard 91.7
41.6
